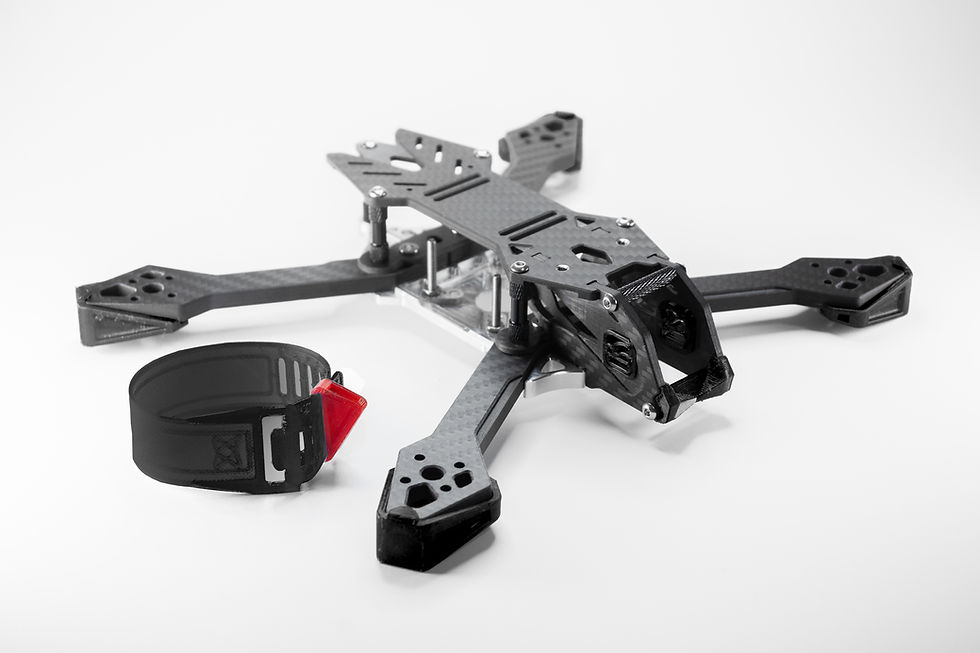

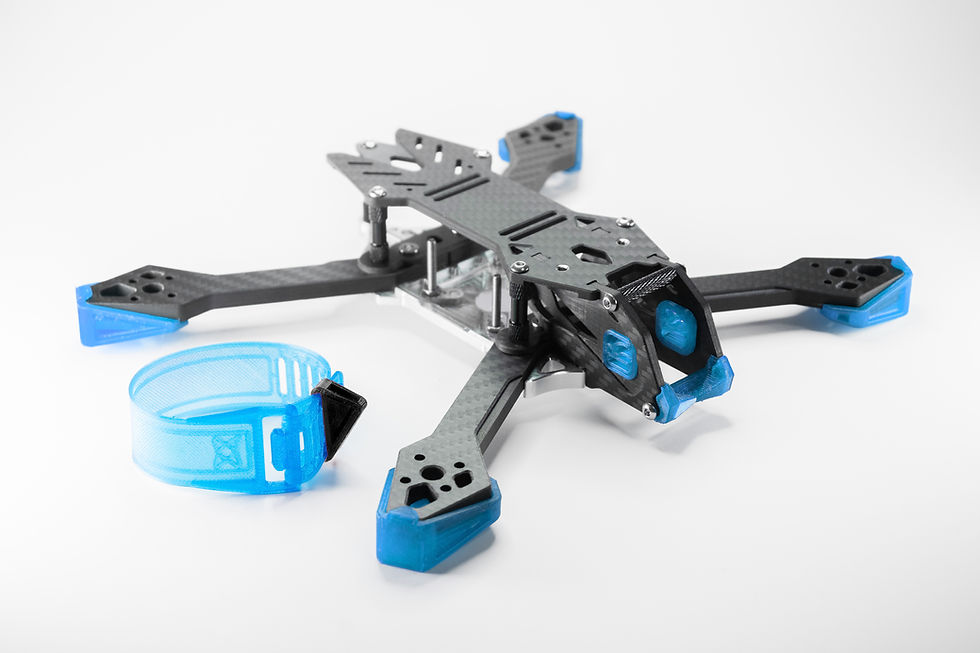

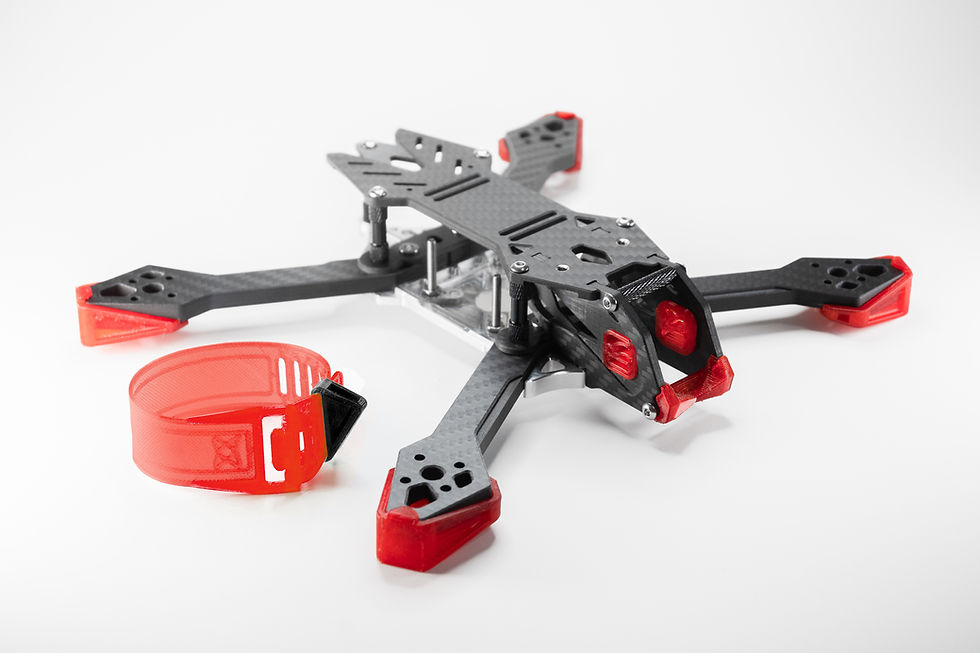

P5G CORE. Minimalistic Brute Elegance.
Like a machinist's wet dream, the raw, blinged out 7075 aluminum base plate holds gorilla-like 6mm arms in place. Then reinforced with thick Twill weave T700 carbon fiber plates, and thicker than normal stand offs. Even with all that extra thickness, P5G is still lighter than most popular 5" tanks. It is milled completely out even in non-visible areas. It's compact form factor minimizes impact to critical components while bringing everything closer to COG. This is the P5G CORE. All that you need to throw it down and punch new holes at the bando.
~PattyFlipz
Features:
1) Lower price, same high quality frame!
2) Squashed X geometry, some props in view
3) Toray T700 twill weave matte carbon fiber plates
4) Thick and Thicker. 3mm top plate + camera cage, 6mm super wide arms
5) 6mm 7075-T6 machined out rigid aluminum base plate protects bottom and prevents wiggle
6) Arms can slide out easily by removing two screws
7) Extremely stiff, rigid construction
8) Very stable footage, great for cinematic footage with Gopro or O3 AU
9) Same weight or less as your typical popular 5" tank but with thicker plates!
10) Designed to be universal - Analog, HD Zero, Walksnail, etc.
11) Battery can be mounted normally or in two toilet tank positions - centered (no gopro), and back (w/gopro)
12) Shark Loop not only helps with turtle mode, but protects your battery upside down
13) Really clean black box log. Tune it up and have fun!
P5G is DTF | DOWN TO FREESTYLE
Proudly designed, 3D printed, and shipped from Vancouver, British Columbia, Canada 🍁
PROTO5 Gauntlet Core
Top plate: 3mm
Camera cage: 3mm
Arms: 6mm
Arm cap: 2mm
Base plate: 6mm
Electronics Mounting:
Base Plate Center: M3 20x20, M2 25.5x25.5, M3 30x30
Top Plate Rear: M2 20x20 M2 25.5x25.5
Maximum Stack Size: 40x40
Maximum Stack Height: 25mm
Motor Mount: 16x16
Max prop size: 5.1"
Action Camera / Accessories Mounting:
Top Plate: Front, action camera mount using stand off and x2 M3 press nuts
Bottom Plate: Front: RX or mini buzzer zip tie zone Rear: Dual accessory zone
Recommended Camera Mounting Size: 19mm ~ 20mm (Variable)
Stand off height: 20mm~25mm
Wheelbase: 171x135mm
Antenna mounting: Zip tie onto stand off, or find print in the downloads section
Assembled Frame weight: TBA
Full Build weight potential: 385g ~ 435g (no lipo)
